TDA7377 Class AB Audio Power Amplifier IC in ZIP-15 Package

฿55.00
Tax excluded Delevered within 1-2 days

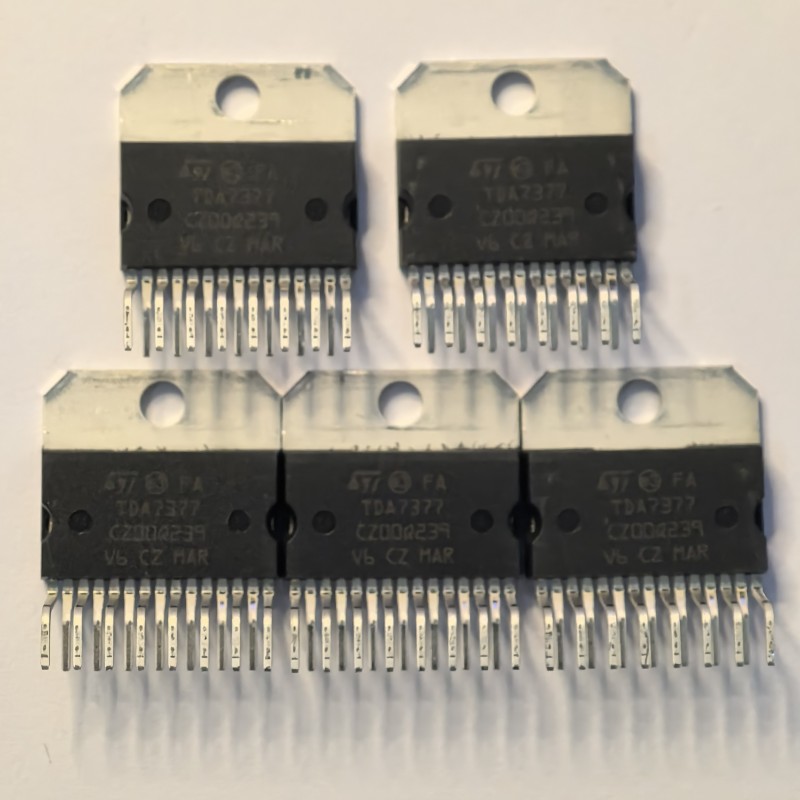

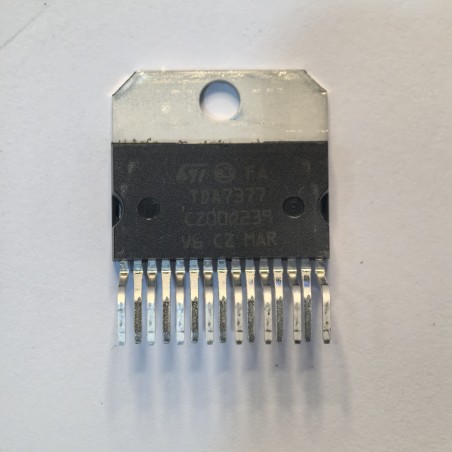

The TDA7377 is a Class AB power amplifier IC designed primarily for automotive audio systems. Manufactured by STMicroelectronics, it features a compact ZIP-15 package (also labeled MULTIWATT-15) and supports flexible configurations for both stereo and multi-channel setups. Its key strengths include high output power, low distortion, and robust protection mechanisms, making it suitable for car radios, portable speakers, and home audio amplifiers

Quantity



Security policy



Delivery policy



Return policy

Key Features

  1. Dual Operation Modes:

    • Bridge Mode (BTL): Delivers 2 × 30W at 4Ω (typical 14.4V supply), ideal for driving front/rear speakers.

    • Quad Single-Ended Mode: Outputs 4 × 6W at 4Ω, enabling 4-channel audio systems.

  2. Protection & Stability:

    • Built-in short-circuit protection and thermal overload shutdown to prevent damage during faults or overheating.

    • "Pop-free" startup/shutdown eliminates audible noise spikes.

  3. Signal Quality:

    • Internally fixed gain (26dB in BTL, 20dB in SE mode) reduces external components and simplifies design.

    • Low distortion (<0.3%) and high signal-to-noise ratio (90dB).

  4. Power Management:

    • Wide operating voltage range: 8V–18V (DC), tolerating transient peaks up to 50V for 50ms.

    • CMOS-compatible standby mode minimizes power consumption during idle states.

  5. Diagnostic Capability:

    • Pin 10 (DIAG) provides real-time fault detection (e.g., clipping, short circuits).

Technical Specifications

Below is a summary of critical electrical and mechanical parameters:

Parameter Value Conditions
Supply Voltage 8V – 18V (DC) Operating range
Output Power 2 × 30W (BTL) / 4 × 6W (SE) @ 4Ω, THD ≤10%, V<sub>CC</sub>=14.4V
Total Harmonic Distortion < 0.3% Full power output
Standby Current ≤ 150μA V<sub>CC</sub>=14V
Operating Temperature -40°C to +150°C Junction range
Package Type ZIP-15 (Multiwatt-15) Dimensions: 29 × 16 × 4.2 mm
Protection Features Thermal shutdown, short-circuit Auto-recovery design

📌 *Note: Output power may vary with voltage and load impedance. For example, at 13.7V/4Ω, bridge mode delivers 2 × 30W (EIAJ standard).*

Applications

  • Car Audio Systems: Primary use case due to voltage range and robustness.

  • Portable Speakers: Low standby current extends battery life.

  • Home Theater/Amplifiers: Flexible channel configurations suit multi-room setups.

Comparison with Alternatives

  • vs. TDA7379: The TDA7379 offers higher power (2 × 38W) and enhanced transient response but requires more complex thermal management. The TDA7377 balances cost and simplicity for mainstream applications.

  • Equivalent Parts: TDA7375, TDA7376 (similar pinout and power profiles).

Design Notes

  • Layout Tips: Use low-resistance speaker cables and ensure solid grounding at PW-GND (Pin 8) and S-GND (Pin 9) to minimize noise.

  • Thermal Management: The ZIP-15 package requires a heatsink for sustained high-power operation
