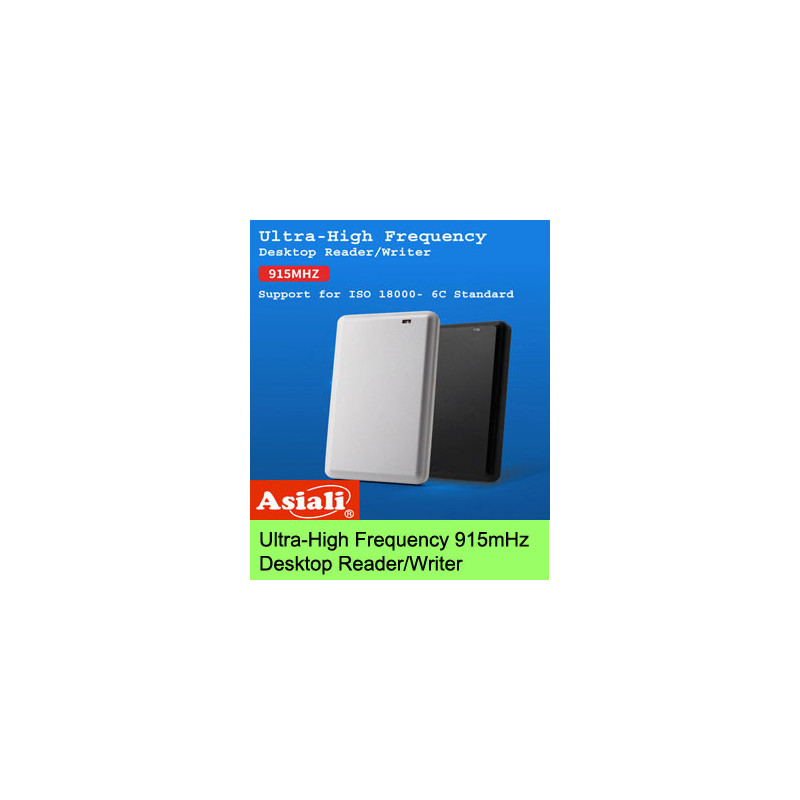

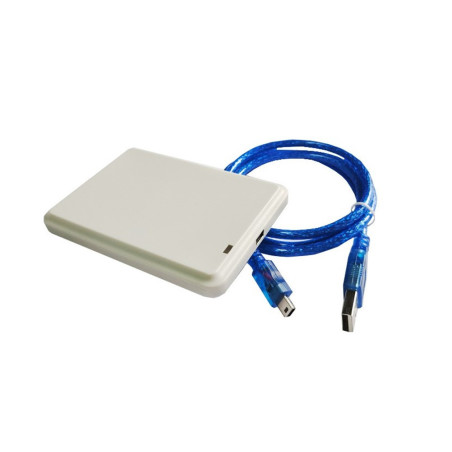

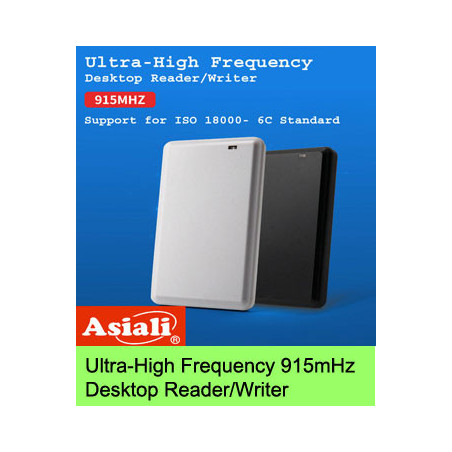

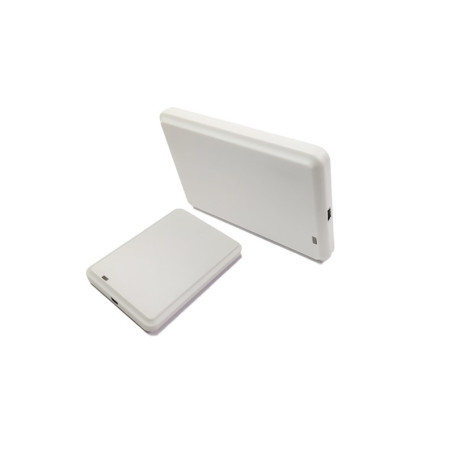

UHF RFID Desktop Reader Writer USB | EPC Gen2 Tag Reading and Card Issuing for Access Control & Warehouse
฿2,336.45
฿2,336.45 Pcs
Tax excluded
Delivery within 10–12 days.
The UHF Desktop Reader is a high-performance UHF RFID reader/writer designed for fast and accurate card or tag processing under the ISO18000-6C (EPC GEN2) standard. Operating at 920–925MHz, it offers rapid reading speeds of less than 0.2 seconds and supports read distances of up to 50cm. The output power is software-adjustable from 12.5 to 26dBm, with support for both FHSS and Fixed Frequency modes to suit various environments. The R17-D is ideal for access control, asset management, visitor registration, and general RFID applications that require stable and reliable performance. With simple USB connectivity, it integrates easily with computers or control systems, making it suitable for offices, retail solutions, and data-management environments.
Security policy
Delivery policy
Return policy
Product Description
UHF RFID Desktop Reader/Writer (USB Interface)
The UHF RFID Desktop Reader is a high-performance UHF RFID desktop reader and writer designed for fast, reliable, and stable tag reading and encoding. It supports ISO18000-6C / EPC Gen2, making it suitable for card issuing, user registration, warehouse operations, asset tracking, and bulk tag writing.
Key Features
Supports UHF EPC Gen2 (ISO18000-6C)
USB plug-and-play (no driver installation required)
Reading distance: 0–0.3 m
Writing distance: 0–0.1 m
Reading speed up to 200 reads/second
Adjustable RF output power (up to 17 dBm)
Operating modes: Active Mode & Command Mode
Supports batch tag writing via Excel/CSV imports
Full SDK available (Windows, Linux, Android, ARM – C++, C#, Java, Python)
Technical Specifications
Protocol: UHF EPC Gen2 / ISO18000-6C
Frequency Range:
902–928 MHz (FCC)
865–868 MHz (CE)
Antenna: 1 dBi built-in ceramic antenna
Interface Options: USB HID, Virtual Keyboard, USB Virtual COM
Power: 5V/200mA via USB
Operating Temperature: -20°C to +60°C
Dimensions: 106 × 70 × 12 mm
Weight: 50 g
Applications
Card issuing & registration systems
Access control solutions
Warehouse management & logistics
Asset and inventory tracking
Anti-counterfeit systems
Smart parking
Production line tracking
How to Use
- Connect the reader to your computer via USB
- Launch the RFID software
- Place the tag on the reading area
- Select the operating mode
- Begin reading or writing; status indicated by LED and buzzer
Special Features
Supports bulk tag writing
Firmware customization available
Patent-designed hardware
Technical support & after-sales service included
Package Details
Box Size: 15 × 10 × 4 cm
Package Weight: approx. 300 g
Material: ABS (Gray/White)
Worldwide shipping supported
