UHF RFID Passive Anti-Metal Label | ABS Shell | Night Vision Waterproof | Anti-Theft Motion Detection | Asset Management Access

Product Overview

The UHF RFID Passive Anti-Metal Label is a high-performance RFID tag specifically designed for reliable asset tracking and management on metal surfaces. Encased in a rugged ABS engineering plastic shell, it effectively eliminates signal interference commonly encountered with standard RFID tags when mounted on metal objects. Featuring the NXP UCODE® 8 chip and compliant with the ISO18000-6C (EPC C1G2) protocol, the tag provides fast data processing, long reading distance, and excellent durability in harsh industrial environments. Its waterproof, dustproof, and heat-resistant construction makes it ideal for logistics, manufacturing, warehousing, equipment management, and other industrial applications.

Product Description

Model: Anti-Metal Tag / 9640 Hard Tag

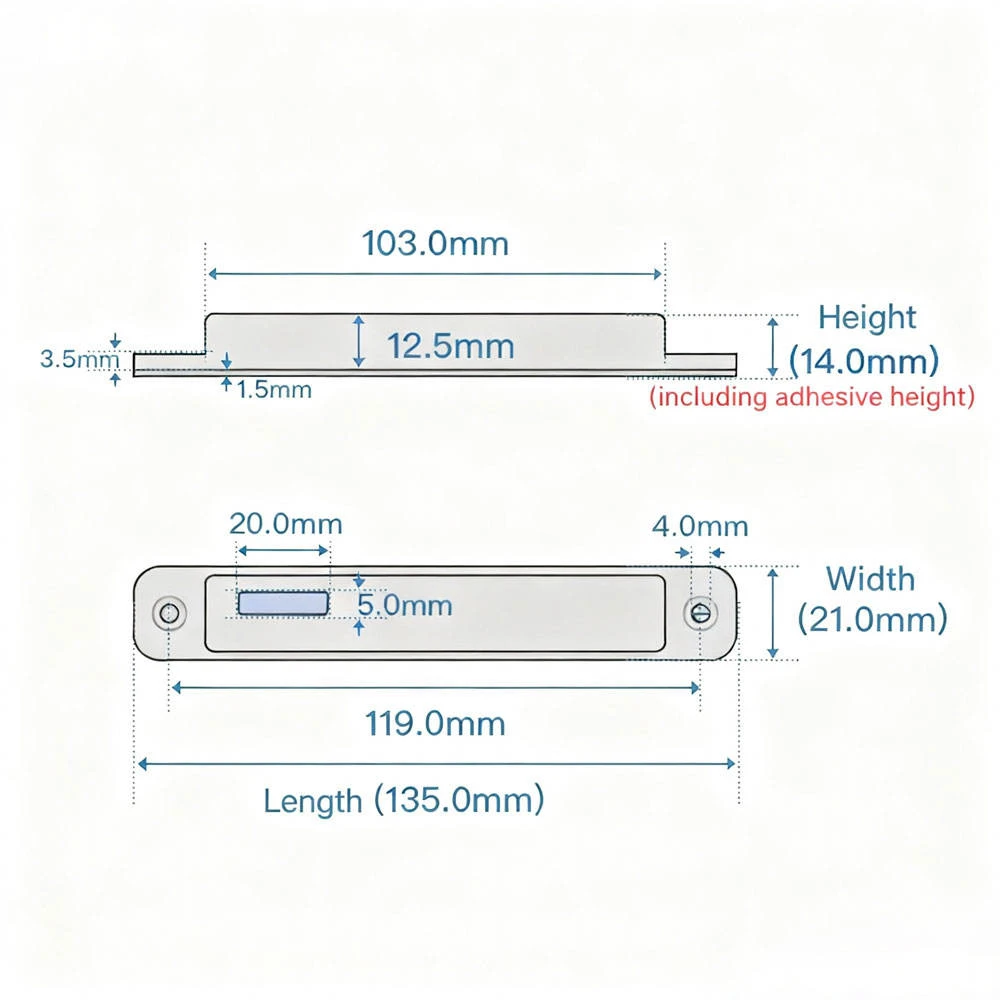

Dimensions: 135 × 21 mm

Antenna Size: 135 × 22 mm

Chip: NXP UCODE® 8

Protocol: ISO18000-6C (EPC C1G2)

Frequency: 860–960 MHz

Memory Capacity: 800 bits

Read/Write Speed: 1–2 ms

Read Range: 3–10 meters (depending on reader performance and environment)

Material: ABS Engineering Plastic

Read/Write Endurance: Up to 100,000 cycles

Power Supply: Passive (No Battery Required)

Features: Anti-Metal, Waterproof, Dustproof, Heat Resistant

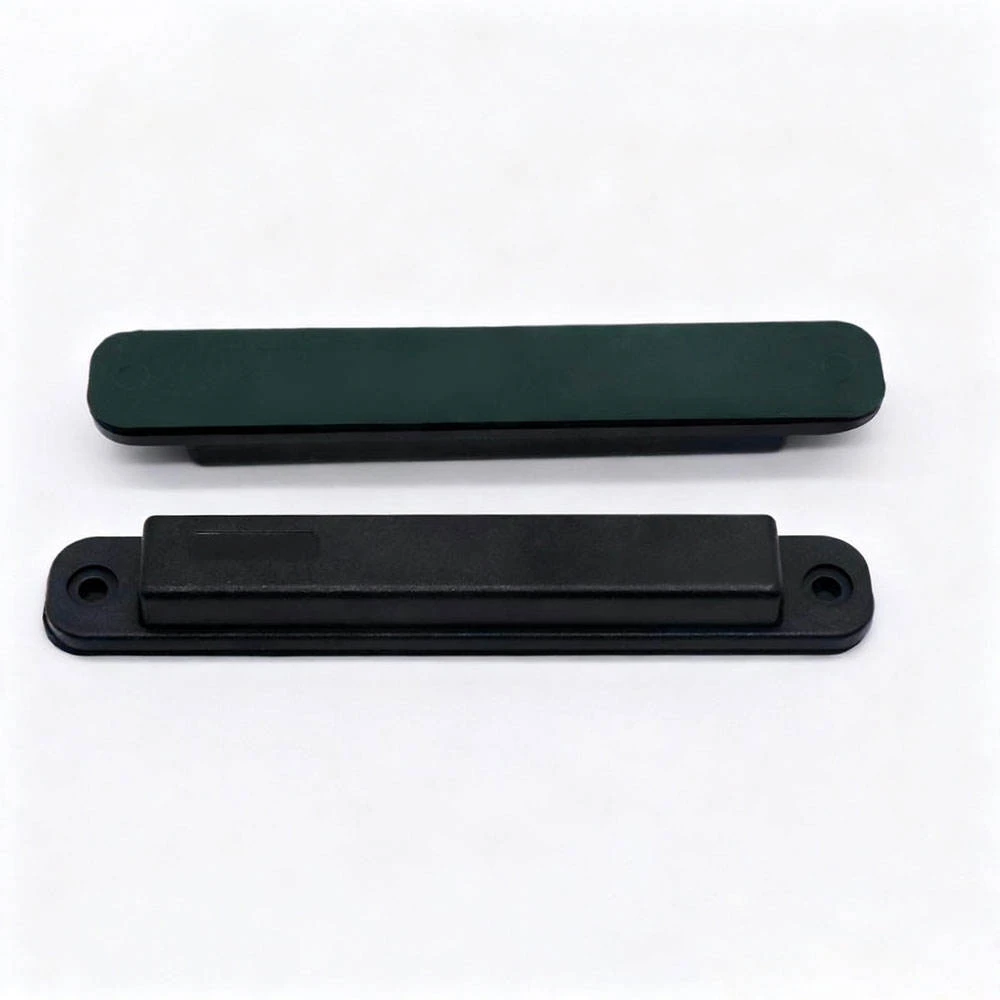

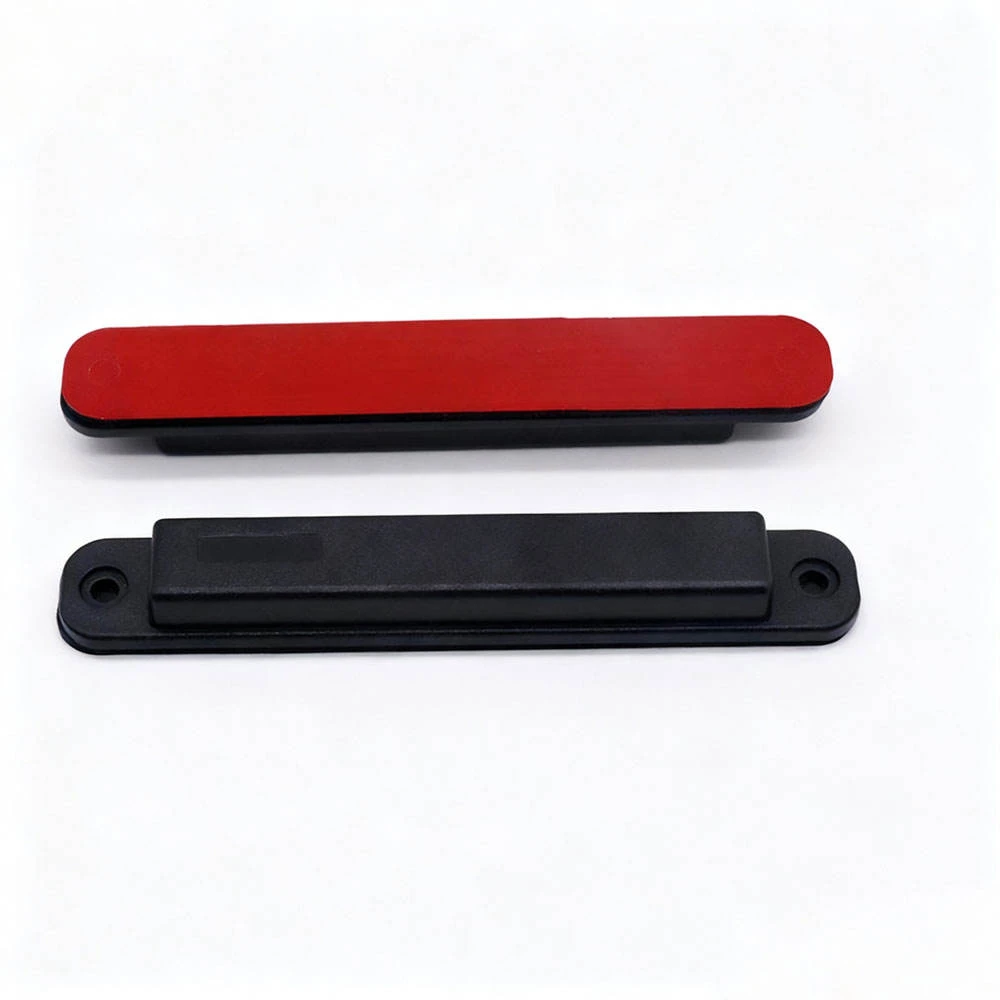

Mounting Methods: Adhesive Backing or Screw Fixing

Operating Environment: Suitable for Indoor and Outdoor Industrial Applications

Key Features

Anti-Metal Design: Optimized for installation on metal surfaces with stable signal performance.

Long Reading Distance: Supports reading ranges up to 10 meters under optimal conditions.

High Durability: ABS housing provides excellent resistance to impact, dust, moisture, and temperature changes.

Fast Data Processing: Read and write operations completed within 1–2 milliseconds.

Passive Operation: No internal battery required, ensuring maintenance-free operation.

Large Memory Capacity: Supports efficient storage of asset identification data.

Flexible Installation: Equipped with adhesive backing and screw holes for multiple mounting options.

Industrial Reliability: Designed for demanding environments including factories, warehouses, and logistics centers.

Global Compatibility: Fully compliant with ISO18000-6C (EPC C1G2) standards.

How to Use

Step 1: Identify the metal asset or equipment that requires RFID tracking.

Step 2: Clean the installation surface to ensure secure attachment.

Step 3: Mount the tag using the adhesive backing or screw fixing method.

Step 4: Use a compatible UHF RFID reader to encode asset information such as asset ID, serial number, or inventory data.

Step 5: Deploy handheld or fixed RFID readers at checkpoints to automatically identify and track tagged assets.

Step 6: Integrate collected data into your asset management or inventory system for real-time monitoring.

Applications

Warehouse & Logistics Management

Fixed Asset Tracking

Forklift & Industrial Equipment Management

Tool & Equipment Monitoring

Vehicle & Container Identification

Power Grid Asset Management

Manufacturing Production Tracking

Apparel & Retail Inventory Management

Library & Archive Management

Unmanned Retail Stores

Pharmaceutical Anti-Counterfeiting

Aviation & Parcel Tracking

Packaging & Shipping

Packaging: Anti-static bag and carton box for safe transportation.

Standard Packing: 100 pieces per carton.

Custom Packaging: Available according to customer requirements.

Sample Lead Time: 3–7 working days.

Bulk Order Lead Time: 7–15 working days.

OEM & ODM Service: Custom size, logo printing, encoding, and packaging available.

FAQ

Q: What is the maximum temperature resistance of this tag?

A: The ABS housing provides reliable heat resistance suitable for most industrial environments. For special high-temperature applications, please contact us for customized solutions.

Q: Can the tag be customized?

A: Yes. We support customization of size, shape, printing, packaging, and RFID data encoding according to customer requirements.

Q: What is the reading distance on metal surfaces?

A: Under optimal conditions and with a compatible UHF RFID reader, the reading distance can reach approximately 3–10 meters. Actual performance depends on reader power and installation environment.

Q: Is the tag suitable for outdoor use?

A: Yes. The tag is waterproof, dustproof, and designed for both indoor and outdoor industrial applications.

Q: Does the tag require a battery?

A: No. This is a passive RFID tag that operates using energy transmitted from the RFID reader.

Q: What is the product warranty?

A: We provide a 12-month warranty covering manufacturing defects under normal operating conditions.
